In vitro Diagnostics Platform for Point-of-Care Testing

An open concept for versatility

ivD-Plattform | Anwendung
© Fraunhofer IZI-BB, Jochen Zick
ivD-platform

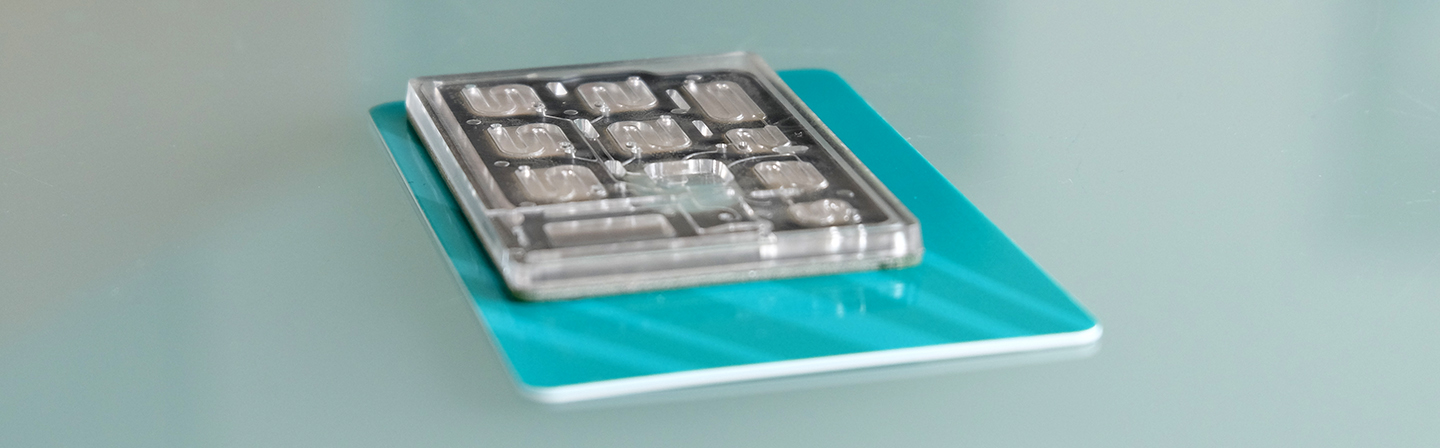

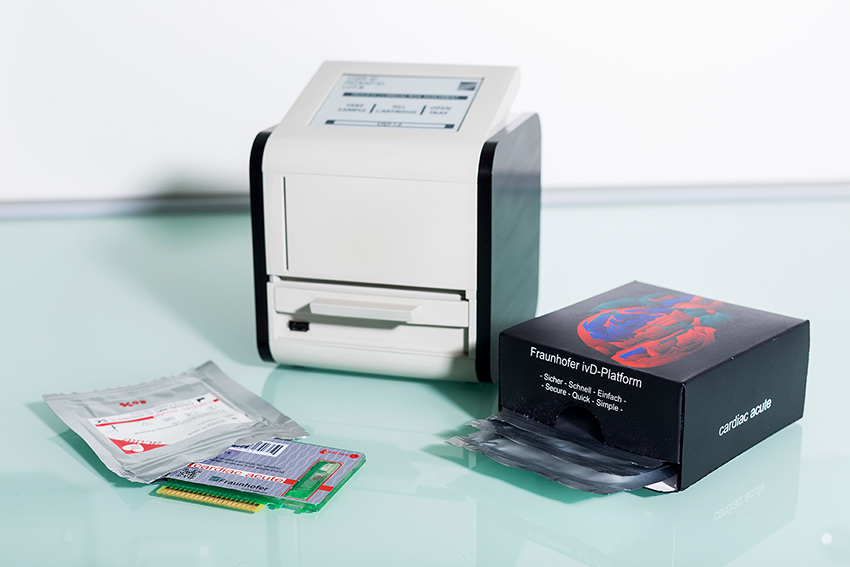

The Fraunhofer ivD-platform consists of a cartridge the size of a credit card (»lab-on-a-chip«) and a base station. Blood, or other biological fluids, can be placed directly onto the cartridge, and are then able to be analyzed automatically in the base station within 10 to 15 minutes. The use of microarrays makes multiparameter diagnosis possible, and also allows a range of capture molecules to be used, such as antibodies, proteins, peptides, glycans or oligonucleotides. For its customers and partners, the institute is able to transfer existing tests (e.g. ELISAs, DNA microarrays, etc.) onto the ivD-platform, to optimize them and provide technical verification, and even ivD certification.

ivD-Plattform
© Fraunhofer IZI-BB, Pierre Tangermann
ivD-platform
Expand all Close all

  • Assay development for serological assays
  • Assay development for blood, urine and saliva samples, as well as other media
  • Multiplex assays for up to 500 analytes
  • DNA-based assays (microarray)
  • PCR and RT-PCR development
  • Antibody assays
  • Dispensation of a range of different biological samples in different volumes/viscosities
  • Linkage of DNA, RNA, proteins and peptides to modified surfaces (glass, gold, silicon, polymer substrates, etc.)
  • Aptamers for in-vitro diagnostics
  • Biomolecular interaction analysis, kinetic analysis
  • Kinetic ranking of interactions using a Biacore Flexchip (peptide antibodies, protein DNA, etc.)
  • Characterization and validation of antibodies (cross-reactivity, specificity)
  • Serum screening
  • Aptamer assays
  • Assay development for biochips, microarray-based assays
  • Feasibility studies for alternative detection systems

Equipment

  • S1/S2 laboratories, assay development for pathogen detection
  • Multiplex assays
  • Microarray facilities, spotting: Biochip arrayer for the production of biochips (GenePix, non-contact, Scienion S5 & S7, TopSpotter, i2 from M2)
  • Scanner technology (Axon, Tecan)
  • Label-free biosensors (Biacore Flexchip, T100)
  • Fluorescence MTP reader
  • Nanoliter microdispenser
  • Hybridization station for semi-automatic microarray processing
